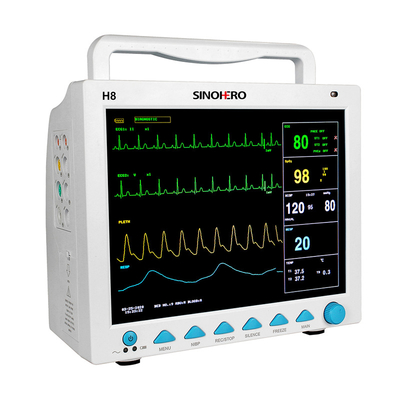

Cheap Price Plastic 12.1" ICU Bedside Monitor Hospital TFT Multiparameter Patient Monitor

2.0 Pieces
MOQ
Cheap Price Plastic 12.1" ICU Bedside Monitor Hospital TFT Multiparameter Patient Monitor
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: H8, H8
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 3 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Type: First-Aid Devices
OEM/ODM: Yes
Screen Size: 12.1"
Display: 12.1'' color TFT LCD
Interface: multi-language
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
Dimension: 314 mm(L)*145 mm(W)*264 mm(H)
Weight: 3.9 Kg
Informations de base
Certification: ce
Model Number: H8, H8
Conditions de paiement et expédition
Description de produit
Product Description
Introduction： CMS8000 12.1'' Multi-Parameter Patient Monitor，The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V～,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system. This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

Functions： Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP 1)ECG Heart rate(HR) ECG waveform Arrhythmia and ST-segment analysis 2)RESP Respiration rate(RR) Respiration waveform 3)SpO2 Oxygen saturation(SpO2) Plethysmogram(PLETH) waveform Pulse rate(PR) Bar graph 4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN) 5)TEMP T1, T2, TD 6)IBP(optional) CH1：SYS，DIA，MAP CH2：SYS，DIA，MAP IBP waveform 7)CO2(optional) EtCO2 InsCO2:Inspired Minimum CO2 AwRR:Air Way Respiration It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.

Features: 1)12.1'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech). 2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection. 3)All-round monitor for adult, pediatric and neonate. 4)With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe. 5)Finish all operations by keys and knobs. 6)Maximum 8-channel waveform synchronous display. 7)Display 7-lead ECG waveform on one screen, cascade ECG waveform display 8)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling. 9)Heart rate variability (HRV) analysis function 10)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data. 11)Review for 71 alarm events of all parameters and 60 arrhythmia alarm events. 12)Drug concentration calculation and titration table functions. 13)One-touch printing of trend graph 14)Connect to Central Monitoring System by 3G, Wi-Fi or wired mode. 15)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring. 16)Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
Performance
Performance： ▲ECG Lead mode: 3-lead or 5-lead Lead selection: I, II, III, aVR, aVL, aVF, V Waveform: 5-lead, dual-channel 3-lead, single-channel Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s
▲HR: Measurement and alarm range: 15～350 bpm Accuracy: ±1 % or ±1 bpm, whichever is greater Alarm accuracy: ± 2 bpm Resolution: 1 bpm ST-segment monitoring: Measurement and alarm range: -2.0 mV ～ +2.0 mV Accuracy: -0.8 mV～+0.8 mV ±0.04 mV or ±10%, whichever is greater Other range: unspecified Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC Pacemaker: yes
▲RESP Method: R-F(RA-LL) Impedance Respiration rate: Measurement and alarm range: 0～150 rpm Resolution: 1 rpm Measurement accuracy: ±2 rpm Alarm accuracy: ±3 rpm Apnea alarm: 10～40s Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s
▲NIBP Method: Oscillometry Mode: Manual/AUTO/STAT Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes Measurement period in STAT mode: 5 minutes Measurement and alarm range: 10 ～ 270 mmHg Resolution: 1 mmHg Cuff pressure accuracy: ±3 mmHg Measurement accuracy: Maximal mean deviation: ±5 mmHg Maximal standard deviation: 8 mmHg Over-pressure protection: Adult mode: 297±3 mmHg Pediatric mode: 240±3 mmHg Neonatal mode: 147±3 mmHg
▲SpO2 Measurement and alarm range: 0 ～ 100% Resolution: 1% Measurement accuracy: 70%～100%: ±2%; 0%～69%: unspecified
▲PR Measurement and alarm range: 30 ～ 250 bpm Measurement accuracy: ±2 bpm or ±2%, whichever is greater
▲TEMP Channel: dual-channel Measurement and alarm range: 0 ～ 50℃ Resolution: 0.1 ℃ Accuracy: ±0.1 ℃
▲EtCO2 Method: Sidestream or Mainstream Measuring Range: 0～150mmHg Resolution: 0～69 mmHg, 0.1 mmHg 70～150 mmHg, 0.25 mmHg Accuracy: 0～40 mm Hg ±2 mm Hg 41～70 mm Hg ±5% 71～100 mm Hg ±8% 101～150 mm Hg ±10% AwRR Range: 2～150 rpm AwRR Accuracy: ±1BPM Apnea Alarm: Yes
▲IBP Channel: dual-chann
Package&Delivery
Physical characteristic: Dimension: 314 mm(L) × 145 mm(W) × 264 mm(H) Weight: 3.9 Kg Package included: 1X H8 Patient Monitor 1X Adult fingertip SpO2 probe (5-pin) 1X Adult NIBP cuff 1X NIBP extension tube 1X ECG lead cable 1X ECG electrode 1X Temperature probe 1X Power cord 1X User Manual
Contact us
Company Profile
Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical devices and medical accessories in China. We are firmly committed to excellence of professional service, product quality and striving for maximal mutual win-win partnership. Sino-Hero has and will continue to put on a great deal of efforts to work towards utmost success mutually with our partners. We are customer-centric and dedicated and want to and work towards being right choice to our worldwide distributors. With years of endless efforts, we have enjoyed growth and continuous success in the international market. SINOHERO's excellent advantages for our valuable international distributors, including: - To offer the most competitive offer to our distributors, not only the best price in the market, but also the most cost-effective products with high quality and reliability - Excellent distribution opportunity to all major markets now is available, we are committed to give our valuable distributors maximal market protection and grow together - Most responsive and efficient service support to your distributors, we offer extended warranty policy on our products, you will enjoy peace of mind - More new products will be in the market and available for our distributors in the following days SINO-HERO business activities focus on product lines below: 1) A wide range of versatile Patient Monitors suitable for all hospital setting, including OR, ER, Recovery Room, General Patient ward 2) Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5) Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems: Color Ultrasound Scanner, Portable Ultrasound System 7) A wide range of compatible ultrasound probes and repairable ultrasound probes Well come to join SINO-HERO big family and grow together!
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2004,sell to Northern Europe(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Mid East(5.00%),Africa(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Patient Monitor,ECG machine,blood pressure monitor,Pulse Oximeter,Infusion pump

4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,French,Russian
