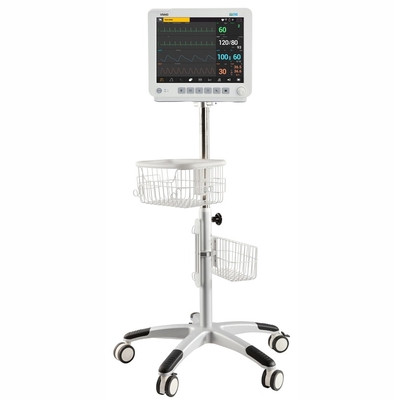

12.1inch Animal Vet Multiparameter VM40 Patient Monitor Portable Veterinary Multiparameter 6 Patient Monitor

VM40 Veterinary monitor

Accurate, Efficient and DurableAccurate, Efficient and Durable

Product features

• Classic display: 12.1 inch LCD display with multiple display format
• HD display:High definition display 1024 * 768
• Simplified operation: Based on classic clinical design, UI operation is ultra simplified
• Reliable quality: passed the rigorous multi application ccenarios test, proved to be durable and helpful
• Long operation hour: with inbuilt 8000mAh lithium battery, machine can be last for 4 hour after fully charged
• Patented ECG specialized algorithm, passed AHA/MIT-BIH database verification
• NIBP with anti-interference and anti-motion algorithm, generating accurate blood readings fastly
• SpO2 with advanced anti-interference and lower perfution detection technology
• Based on black body light source technology, CO2 is with improved accuracy and reliability

Advanced measurement technology

• Applicable to small animals
• Accurate measurement in 0.075% low perfusion index, excellent anti-motion capability, generating more accurate, more stable, and more reliable datas
• Small animal specilized NIBP/SPO2 module
• CO2 min. sampling volume 50ml/Min
• CO2 double channel sensor, iPX4 waterproof level for external module, Anti-shock, anti-drop, easy to use
• IBP measurement range: -50~400mmHg
• Heart rate measurement upto 350 bpm
• Self-developed cost-effective anesthetic gas module

Product configuration

• Standard configuration:ECG,SpO2,NIBP,RESP,TEMP,PR
• Optional configuration:CO2,IBP,C.O. AG
• Other:Trolley, wall mount

Physical specs

• Display 12.1 inch TFT screen, 1024*768, multiple displays including big font display, Oxy CRG display, etc
• Waveform: 7 lead wave form
• Indicator:alarm indicator, power indicator, battery indicator, pulse rate sound, alarm sound
• Port:specification port, AC port, LAN port, USB port

ECG

• Lead:3/5 lead
• Waveform:2 channel
•  Gain:X0.25,X0.5,X1,X2,X4
• Speed:12.5mm/s;25mm/s;20mm/s
•  HR range:15~300BPM(AUD);15~350BPM(NEO)
• Filter mode:DIA(0.05~100Hz);MON(0.5~40Hz);SUR(1~25Hz)
• Protection:Anti-electric knife;Anti-defibrillation protection;5000V isolation strength
• ST diagnosis:-2.5mV~2.5mV; Arrhythmia analysis; Pacing detection

RESP

• Principle: Impedance Breathing
• Range:0~120RPM
• Accuracy:±2rpm

SpO2

• SPO2:range(0~100%);Resolution(1%);
• Accuracy:±2%(70~100%);
• PR:range(20~254BPM),accurate( ± 2BPM)

NIBP

• Principle: Oscillatio
• Measurement mode: Manul/Auto/Continuous
• Pressure unit:mmHg/Kpa
• Measurement parameter:systolic, diastolic, mean
• Systolic range:Horse 40~270mmHg,Dog:40~270mmHg;Cat:40~220mmHg
• Diastolic range:Horse :10~220mmHg;Dog:10~220mmHg;Cat:10~190mmHg
• Mean range:Horse :20~230mmHg;Dog:20~230mmHg; Cat :20~200mmHg
• Accuracy:±3mmHg
• Double overvoltage protection

CO2

• CO2 range:0~150mmHg;accuracy: ± 2mmHg(0~40mmHg), ± 5%(41~100mmHg), ± 8%(101~150mmHg)
• Respiratory rate range:0~150RPM;Accuracy:±2RPM
• Sampling flow:50ml/Min
• Applicable to ADU, PED, and NEO

IBP

• IBP range:-50~400mmHg;accuracy: ± 3mmHg(0~40mmHg)
• Supports multiple measurement modes:ABP,CVP,ICP,LAP
• Pulse rate range:20~254BPM,Accurate: ±2RPM
• Support dual-channel IBP simultaneous measurement

AG Gas

• Mode:Main stream/side stream
• ISO: range:0-5% accuracy:0.15Vol%+ reading 5%
• SEV:range: 0-8% accuracy:0.15xVol%+reading 5%
• CO2: range:0-20% accuracty:0.20Vol%+ reading 5%(0~5%), 0.20Vol%+ reading 8%(5.1~20%)
• RESP:range:0~120RPM,accuracy:±2RPM
• Anesthetic gas ID automatic identification
• Automatic recognition time is less than 20s
• Sampling flow:50ml/Min
