Aperçu /Produits/Moniteur du patient au chevet du lit/Devices Touch Screen Patient Monitor S90 Patient Monitor Emergency Hospital Apparatus Bedside First Aid Monitor

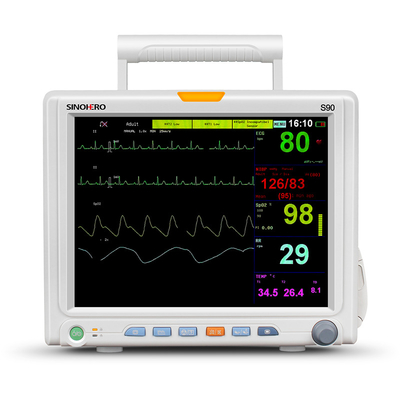

Devices Touch Screen Patient Monitor S90 Patient Monitor Emergency Hospital Apparatus Bedside First Aid Monitor

1 Piece
MOQ
Devices Touch Screen Patient Monitor S90 Patient Monitor Emergency Hospital Apparatus Bedside First Aid Monitor
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: S90
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 3 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Type: S90 Touch Screen Patient Monitor
Certificate: CE ISO
Model: Medical science Multi-parameter patient monitor
Standard parameters: ECG, SpO2 , NIBP, RESP, 2-Temp, PR
Display: 12.1" Color TFT-LED Anti-dazzling
Function: First-Aid Devices, Examination Therapy Equipments
ECG: 3 Leads /5 Leads/12 Leads
10.4" Color TFT-LED: 12.1" Color TFT-LED
Nellcor-SpO2 Measurement Range: 99.5%
Safety: IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Informations de base
Certification: ce, CE ISO
Model Number: S90, Medical science Multi-parameter patient monitor
Conditions de paiement et expédition
Packaging Details: Package included: 1X S90 Patient Monitor(Printer not included) 1X5-lead ECG cable 1XNIBP tube and Cuff 1XTemp probe 1XInternal Battery(Built-in) 1X ECG Electrodes (10PCS) 1XSPO2 probe 1X Power cord 1X User Manual Options:2-TEMP, 2-IBP, EtCO2, Recorder, 1-
Supply Ability: 100000 Unit/Units per Month
Description de produit
Product Description
12.1" TFT display hospital patient monitor multipara patient monitor CE ISO approved
● Introduction:
S90 Patient Monitor is a device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual-channel TEMP, etc. It integrates parameter measurement module, display and ecorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.


● Feature:
12.1" color TFT display with maximum 10 waveforms Power software function include OxyCRG,Large Font,Short Trend,and Drug calculations Pitch tone to provide audibly recognized SpO2 Maximum 168-hour trends to review all parameters information Rechargeable battery for long time use Wire or wireless networking with Central Mornitoring Systems Standard configuration: ECG, RESP, SPO2, TEMP, PR, NIBP, Bed to bed view, Drug calculation, Lithium Battery Option configuration: 2-TEMP, 2-IBP, EtCO2, Recorder, 1-IBP, Multi-gas analysis


●Application:
It suitable for bedside, General Ward, operation room, ICU, CCU etc.


Product name
S90 (12.1"TFT) Multi-Parameter Patient Monitor with maximum 10 waveforms
Place of Origin
China
Brand Name
SINOHERO
Standard Parameters
ECG, RESP, SPO2, TEMP, PR, NIBP, Bed to bed view, Drug calculation, Lithium Battery
Optional Parameters
Nellcor SpO2, Masimo SpO2, 2-TEMP, 2-IBP, 1-IBP, EtCO2(Sidestream,Microstream,Mainstream)
Multigas/O2, VGA output, Thermal recorder
Power Supply:
Electricity
After-sale Service
Online technical support
Material
ABS
Quality Certification
CE ISO
Safety standard
IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Instrument classification
Class II
Display
High Acuity 12.1" color TFT Full Touch Screen
Resolution
800*600 pixels
Power Input
less than 150VA
Power Voltage
AC 100-240V 50/60Hz
Safety class
Category I


● Performance:

Technical Specifications of S90:
Power supply
- Power Voltage: AC 100-240V 50/60Hz
- Power Input: <=85VA
- Safety class: Category I

Display
- 12.1"Color TFT display
- Resolution:800x600 pixels

Battery
- Type: Rechargeable Acid Battery(Option Lithium
battery)
- Operating time under the normal use and full charge:>=
120minutes
- 2 batteries >=240 minutes (Option Lithium battery will
double operate time)

Thermal Recorder
- Method: Thermal dot array
- Paper width:50mm(1.97 in)
- Paper Speed:12.5/25/50(mm/sec)
- Traces: Maximum 3 tracks

Alarm
- Three Levels: Low, medium and high
- Indication: Auditory and visual
- Setup: Default and custom
- Silence: All alarm can be silenced
- Volume: 45-85 dB measured at 1 meter

Trend
- Trend: 168 hours
- Parameters option: HR, SpO2, NIBP, PR, RESP,
EtCO2, Temp1, Temp2, AA, N2O,O2, IBP1, IBP2, ST.
- Cycle intervals of trend storage1 min, 2 min, 3 min, 4
min, 5 min, 10 min, 15 min, 20 min, 25 min, 30 min.

Storage & Reviewing
- ECG: 30 minutes one important lead's ECG waveform
- Alarm: 1800 groups alarm events reviewing
- NIBP: 1000 groups NIBP measurement
- Arrhythmia: 128 groups data(8 seconds ECG
waveform)
- Power-off storage: 72 hours trend data & 1 ECG wave
form (Option)

ECG
- Lead Mode:3-leads ECG input
5-leads ECG input
- Lead selection: I, II, III
I, II, III, aVR, aVL, aVF, V-
- Gain: 2.5mm/mV(×0.25), 5mm/mV(×0.5), 10mm/m
V(×1), 20mm/mV(×2), 40mm/mV(×4), Auto
- CMRR: Monitor mode>=105dB
Surgery mode<=105dB
Diagnostic mode>=90dB
- Frequency response(-3d B):
Monitor mode 0.5~40Hz
Surgery mode 1~25Hz
Diagnostic mode 0.05~150Hz
- input impedance: >=5.0Mohm
- ECG signal range:±10.0mV
- Electrode offset potential: ±500mV
- Patient Leakage Current:<10uA
- Standardizing signal:1mV±5%
- Baseline recovery:<5s after Defibrillation.(Mon or Surg
mode)
- Indication of electrode separation: Every electrode(ex
clusive of RL)
- Protection: Breakdown Voltage 4000AVC 50/60Hz;de
fibrillator proof
- Sweep speed:12.5mm/s,25mm/s,50mm/s

HR
- Range: Adult 10~300bpm
Pediatric & Neonate 10~350bpm
- Refreshing time:<=50 bpm Per2 pulses
50~120bpm per 4 pulses
>=120bpm per 6 pulses
- Resolution: 1bpm
- Accuracy: ±1% or ±1bpm,whichever is greater

ST segment
- Measurement range: -2.0mV~2.0mV
- Resolution:0.01mV

RESP
- Method: Impedance variation between RA-LL(R-F)
- Gain: ×1, ×2, ×4
- Bandwidth:0.25Hz to 2.0Hz (-3dB)
- Sweep Speed: 6.25mm/s,12.5mm/s,25mm/s
- Measurement Range:0~150 rpm
- Accruacy:±2rpm

NIBP
- Method: Automatic oscillometry
- Range of measurement:
Adult: 10~270mmHg
Child: 10~235mmHg
Neonate: 10~135mmHg

- Accuracy: Static:±2% or ±3mmHg,whichecer is greater
- Unit: mmHg, kPa
- Intervals for AUTO measurement
time:1,2,3,4,5,10,15,20,30,45,60,90 minutes; 2,4,8 hours
- Pulse rate range:40~240bpm

Standard SpO2(Digital)
- Measurement Range:0~100%
- Accuracy: At70~100%,±2%
At0~69%,unspecified
PR
- Measurement Range:25~250bpm
- Accuracy: ±1% or ±1bpm,whichever is greater

Nellcor-SpO2
- Measurement Range:0~100%
- Resolution:1%
- Accuracy:At70~100%:±2%(Adult)
At70~100%:±3%(Neonate)
At70~100%:±2%(Low Perfusion)
At0~69%,unspecified
PR
- Measurement Range:20~300bpm
- Resolution:1bpm
- Accuracy: 20bpm to 250bpm: ±3bpm
251bpm to 300bpm: unspecified

Masimo-SpO2
- Measurement Range: 0% to 100%
- Resolution:1%
- Accuracy:
70% to 100%:±2%(adult/pediatric, on-motion conditions)
70% to 100%:± 3 %( neonate, on-motion conditions)
70% to 100%:± 3 %( motion conditions)
0% to 69%, unspecified
- Average time:2-4s,4-6s,8s,10s,12s,14s,16s

PR
- Measurement Range:25bpm to 240bpm
- Accuracy: ±3bpm(non-motion conditions)
± 5bpm (motion conditions)
- Resolution: 1bpm

TEMP
- Measurement Range: 25.0ºC~50.0ºC
- Accuracy: ±0.1ºC (exclusive of probe)
- Unit: Celsius(ºC),Fahrenheit(ºF)
- Connecting cable: Compatible with YSI-400 serial

IBP
- Channel: 2
- Measurement way: Directly invasive pressure measure
ment
- Sensitivity of transducer: 5uV/V/mmHg, ±2%
- Impedance of transducer: 300 to 3000Ω
- Measurement Range: -50~+300mmHg
- Resolution: 1mmHg
- Unit: mmHg, kpa, cmH2O
- Accuracy:
Static: ±1mmHg or ±2%, whichever is grater(exclusive of
transducer)
±4mmHg or ±4%, whichever is grater(inclusion of
transducer)
Dynamic:±4mmHg or 4%, whichever is grater
Transducer sites: Arterial Pressure (ART)
Pulmonary Artery Pressure (PA)
Left Atrium Pressure (LAP)
Right Atrium Pressure (RAP)
Central Venous Pressure (CVP)
Intracranial Pressure (ICP)

EtCO2 (Sidestream)
- Measure method: Infrared spectrum
- Measure Range: 0.0~13.1 %( 0~99.6mmHg)
- Resolution: 1mmHg
- Unit: %,mmHg,kpa
- Accuracy: 0% to 4.9%, ±0.3 %( ±2.0mmHg)
5.0%to 13.1 %,< ±10%of the reading
- Measurement range of awRR: 2~150rpm
- Calibration: Offset calibration:auto,manual,Gain calibration

EtCO2(Mainstream)
- Measure method: Infrared spectrum
- Warm up time: Capnogram displayed in less than 15
seconds,At an ambient temperature of 25ºC,full specifications
within 2 minutes.
- Measure Range: 0.0~19.7 %(0~150mmHg)
- Resolution: 1mmHg
- Rise time(10 l/min):<=60ms
- Unit: %,mmHg,kpa
- CO2 Accuracy: 0-40mmHg, ±2mmHg
41-70mmHg, ±5% of reading
71-100mmHg, ±8% of reading
101-150mmHg, ±10% of reading
(at 760 mmHg,ambient temperature of 25ºC)
- awRR measurement range:0~150rpm
- awRR measurement Accuracy: ±1rpm

EtCO2 (Microstream)
- Measure method: Infrared spectrum
- Warm up time: Capnogram displayed in less than 20 seconds,
At an ambient temperature of 25ºC,full specifications within 2
minutes.
- Measure Range: 0.0-19.7%(0-150mmHg)
- Resolution: 1mmHg
- Unit: %,mmHg, kpa
- CO2 Accuracy: 0-40mmHg, ±2mmHg
41-70mmHg, ±5% of reading
71-100mmHg, ±8% of reading
101-150mmHg, ±10% of reading
(At 760 mmHg, ambient temperature of 25ºC)
(When RR>80 rpm, all the rang is ±12% of reading)
CO2 response time: <3S
- awRR measurement range:2~150rpm
- awRR measurement Accuracy: ±1rpm
- Sample Flow Rate:50ml/min ±10ml/min

Multi Gas
- Measure method: Infrared spectrum
- Fi and ET values: CO2 ,N2O ,O2 ,AG(HAL,ISO,NEF,
SEV,DES)
- Resolution:1%
- Unit:%
- Calibration: Room air calibration automatically when changing
airway Adapter (<5 sec)
- Warm-up time:<10S,full accuracy within 1min
- Measurement and alarm range of AG
- Gas Range Accuracy
CO2 0-10% ±(0.3% ABS+4%REL)
N2O 0-100% ±(2% ABS+8%REL)
O2 10-100% ±(2% ABS+2%REL)
HAL,ISO,ENF 0-5% ±(0.15% ABS+10%REL)
SEV 0-8% ±(0.15% ABS+10%REL)
DES 0-18% ±(0.15% ABS+10%REL)
- awRR measurement range: 0~150rpm
- awRR measurement Accuracy: ±1rpm
- Rise time(flowing speed 10I/min)CO2<=90ms
O2<=300ms
N2O<=300ms
Hal,Iso,Enf,Sev,Des<=300ms
- Total system response time :<1seconds



Standard configuration of S90:
ECG,HR,RESP,SpO2,NIBP,1-TEMP,Lithium Battery,PR

Optional parameter& configuration of S90:
Nellcor SpO2,Masimo SpO2,2-TEMP,2-IBP,EtCO2(Sidestream,Microstream,Mainstream)
Multigas/O2,VGA output,Thermal recorder.



Recommend Products

NEC8

Finger Pulse Oximeter
· Integrated with SpO2 probe and processing display module · Small in volume, light in weight and convenient in carrying · Operation of the product is simple, low power consumption · SpO2 value display · Pulse rate value display, bar graph display · Pulse waveform display · The display mode can be changed

SE1208

12-Channel ECG Machine * Splendid 10” color TFT with Alpha-numeric keyboard *Simultaneous 12 leads of ECG printing(Roll or Z-fold) *Multiple USB port for connecting PC-ECG software and external printer * Excellent ECG auto-interpretation program and Pacemaker detection * Reliable and fas Network Connectivity and data transmission

JRT200

Thermometer
* LCD display
* Adopts the latest infrared technology
* Non-contact design
* High temp alarm
* Double mode, can be used to measure the temperature of human body and object surface.
* Just 1 second can measure out the body temperature,Fast & accurate reading within 1 second.
Packing & Delivery
Working Environment:
- Operating temperature:0~+40ºC
- Transportation and Storage temperature:-20ºC to +50ºC
- Relative humisity:Working<=85%
Transportation and storage <=93%
- Atmospheric pressure:860hPa to 1060hPa
Transportation and storage 500-1060 hPa

Physical Identity:
- Product size: 31.8*26.4*15.2cm
- Packing size: 43*32*35cm
- Net weight: 4.5kg
- Gross weight: 6.5kg
Certification： IEC60601-1 Approved, CE marking according to MDD93/42/EEC

Standard Accessories:
1* S90 12.1" Multi-parameter Patient Monitor
1* Adult Reusable Finger Clip SpO2 Sensor
1* ECG 5-Lead Cable, Snap end
1* Adult Reusable NIBP Cuff
1* Adult Reusable NIBP Tube
1* Built-in Battery
10* ECG disposable electrodes
1* Temperature Probe Skin
1* Power Cable
Contect us
Company Profile
Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical devices and medical accessories in China. We are firmly committed to excellence of professional service, product quality and striving for maximal mutual win-win partnership. Sino-Hero has and will continue to put on a great deal of efforts to work towards utmost success mutually with our partners. We are customer-centric and dedicated and want to and work towards being right choice to our worldwide distributors. With years of endless efforts, we have enjoyed growth and continuous success in the international market.

SINOHERO's excellent advantages for our valuable international distributors, including: - To offer the most competitive offer to our distributors, not only the best price in the market, but also the most cost-effective products with high quality and reliability - Excellent distribution opportunity to all major markets now is available, we are committed to give our valuable distributors maximal market protection and grow together - Most responsive and efficient service support to your distributors, we offer extended warranty policy on our products, you will enjoy peace of mind - More new products will be in the market and available for our distributors in the following days.

SINO-HERO business activities focus on product lines below:
1) A wide range of versatile Patient Monitors suitable for all hospital setting, including OR, ER, Recovery Room, General Patient ward
2)Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe
3) ECG machine and its accessories
4) Infusion pump and Syringe Pump system
5) Obstetrical product: Fetal Doppler, Colposcope
6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System
7) A wide range of compatible ultrasound probes and repairable ultrasound probes.

Thank you for your trust and support, we will continue to provide you with quality productand service sinserely.

Certifications
FAQ
1.Who we are? Where we are from? Where we service?
We are Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical devices and medical accessories in China. We are based in Shenzhen,Guangdong, China, start from 2004, WE service more than 100 country： Northern Europe(10.00%),Western Europe(10.00%),EasternAsia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Mid East(5.00%),Africa(5.00%). There are total about 11-50 people in our office. 2.What we have?How can we guarantee quality?
We are professional in medical more than 16 Years,We have TUV CE a& ISO13485 Certifications for our products. All of our items Always a pre-production sample before mass production; All items get 100% checking before in our stock; Always final Inspection before shipment. 3.What items we could provide for you? SINO-HERO business activities focus on product lines below: 1) A wide range of versatile Patient Monitors suitable for all hospital setting, including OR, ER, Recovery Room, General Patient ward 2)Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5) Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System 7) A wide range of compatible ultrasound probes and repairable ultrasound probes. 4. Why should you buy from us not from other suppliers? SINHERO’s products are installed in over 50 countries, including US, UK, Germany, France, Italy, Spain, etc. and the percentage of total sales from Europe has been growing fast. The main competitive advantages of SINOHERO’s products: a. quality b. functionality c. easy maintenance and easy to operate d. spare parts and consumables at low cost e. on-time delivery f. strong after sales technical support 5. What services we Can provide for you? We could provide items with Ready to ship,we also could do OEM,ODM orders,we also welcome you to be our Brand Sinohero Agent to work together with us; Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery； Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow; Language Spoken: English,Chinese,Spanish,German,French,Russian
produits recommandés
Prenez contact avec nous
Personne à contacter : Maggie
Caractères restants(20/3000)
Entrer en contact
Étage 6, bâtiment 15, n° 987, jardin olympique de ChuLeng, Ningbo, Zhejiang, Chine
À propos
Profil de la société Visite d'usine Contrôle de la qualité Contact
Produits
Moniteur du patient à paramètres multiplesMoniteur du patient en soins intensifsmoniteur patient vétérinaire Toutes les catégories
Mail nous
Faites-nous part de vos besoins. Nous connecterons les meilleurs produits avec vous.
Plan du site │ Site mobile │ Politique de confidentialité
Chine Bon Qualité Moniteur du patient à paramètres multiples Fournisseur. © 2022 - 2024 patientsmonitors.com. All Rights Reserved.
